Unified Product Enrich

         The Unified Product Enrich process uses data prepared by the Unified Event Enrich process to apply functions to the data, connect lookups, and publish the data into a product-level dataset, which can be thought of as a sub-event level.

Process Configuration

        The Unified Product Enrich process consists of four screens that allow you to connect numerous datasets, map them to the schema, apply desired filters, and understand where the data is written. Each screen's specifications and field descriptions are provided below.

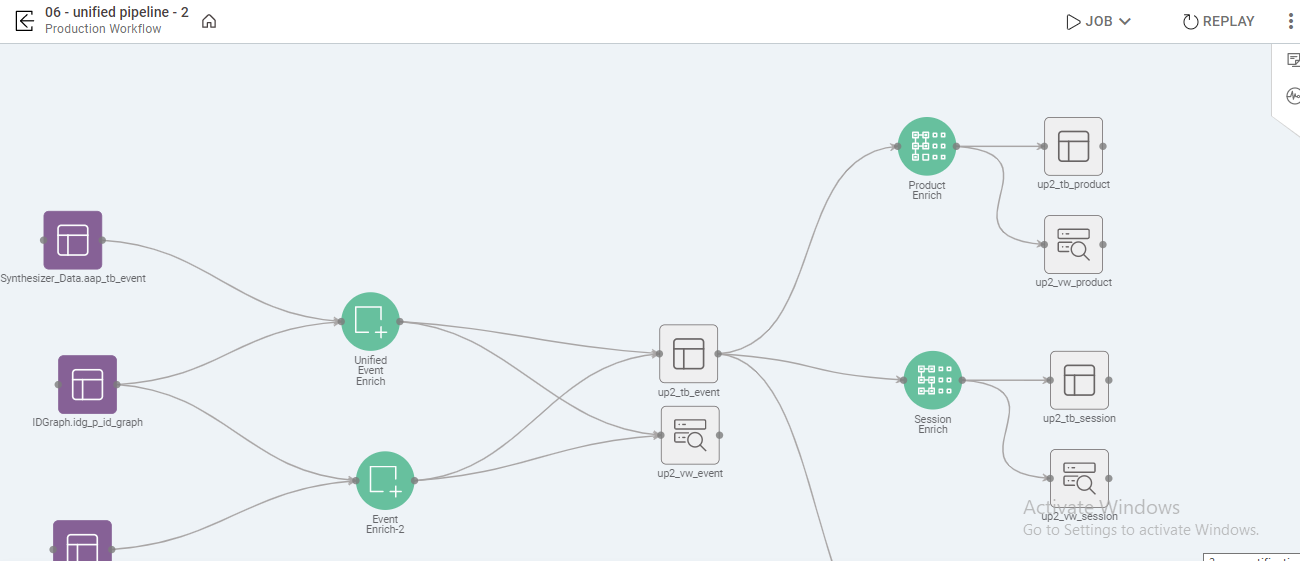

Click on the Product Enrich node to access the editor.

Join

       This section provides the information Syntasa needs if more than one set of data will be joined. To create a join, click the green plus button.

  • Join Type - Left or inner join at this time
  • Source - Provide a source name. It is a mandatory field
  • Alias - Type a table alias if a different name is desired or required
  •  Filter Join - This is not needed here. A filter is needed for
    • Avoids reading of unnecessary data from the lookup table.
    • It is beneficial only when the lookup (secondary table ) is big.
    • It helps spark perform some optimization while doing product/event enrich.
    • It extracts only values(let's say Product ID) that are present in the main table from the lookup table and performs the join.
  • Left Value - Choose the field from the first dataset that will provide a link with the joined dataset (i.e. customer ID if joining a CRM dataset)
  • Operator - Select how the left value should be compared with the right value, for a join this will typically be a = sign
  • Right Value - Select the joining dataset value that is being compared with the left value

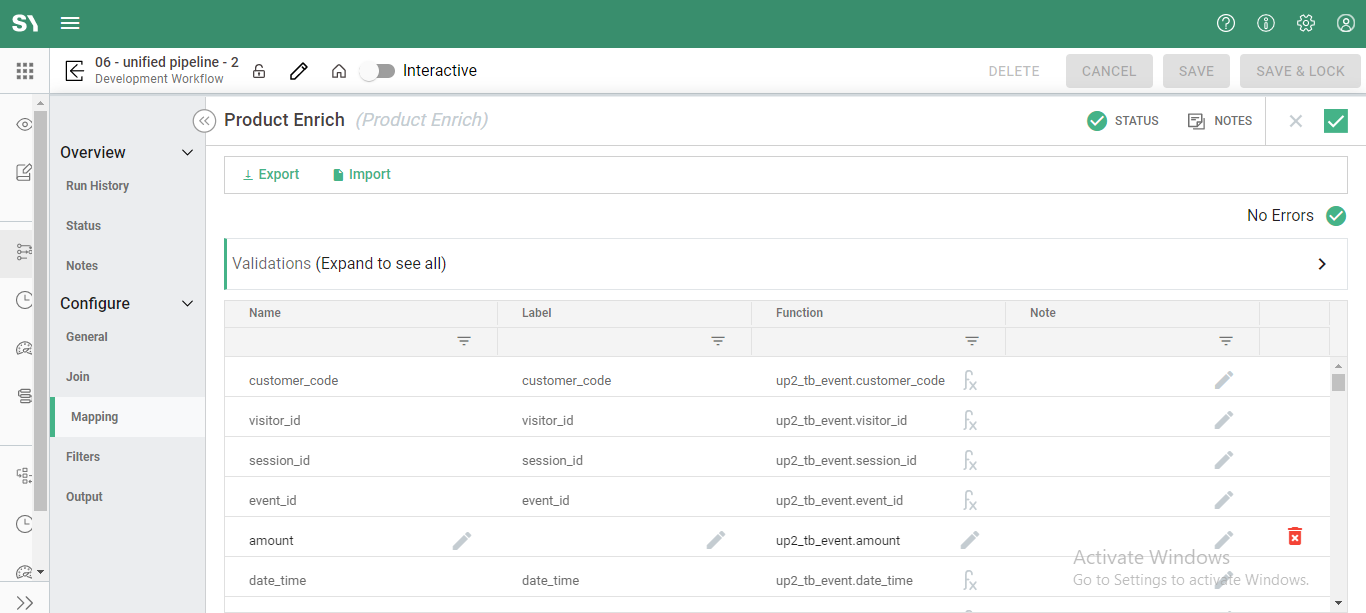

Mapping

       The table is where the event data is defined and labeled into the Syntasa schema. Syntasa has a growing set of custom functions that can be applied along with any Hive functions to perform data transformation.

  • Name - fixed Syntasa table column labels, some names are editable
  • Label - customizable user-friendly names
  • Function - This is where we write our enrichment, this can be one of the following:
    • You can write custom logic like regex or a case statement.
    • Combining columns into one column. For example, customer_name might be cust_name in one report and first_name in another. Unified, we can combine these as we will have one column for both report suites that we might call customer_name. This would be achieved by typing report_name.field_name_in_source
  • Note - User can add custom notes
  • Delete - The user is able to delete the desired row from the table

Actions

       For  Unified Event Enrich there are two options available: Import and Export. Import is selected if the user wants to provide a custom mapping schema that they have created using an Excel .csv file. Export is utilized to export the existing mapping schema in a .csv format that can be used to assist in the editing or manipulation of the schema. This updated file could then be used to input an updated schema into the dataset via the Import selection.

To perform Import:

  • Click Actions button
  • Click Import
  • Click on the green paperclip icon to browse to the desired file to import
  • Once the file is selected, click Open
  • Click Apply
  • Wait 60 seconds to ensure the process of pulling in mappings and labels is complete
  • Use the scroll, order, and search options to locate the cust_fields and cust_metrics fields to ensure all the report suite custom fields have been mapped

To perform Export:

  • Click Actions button
  • Click Export
  • syntasa_mapping_export.csv will be created and downloaded for the user

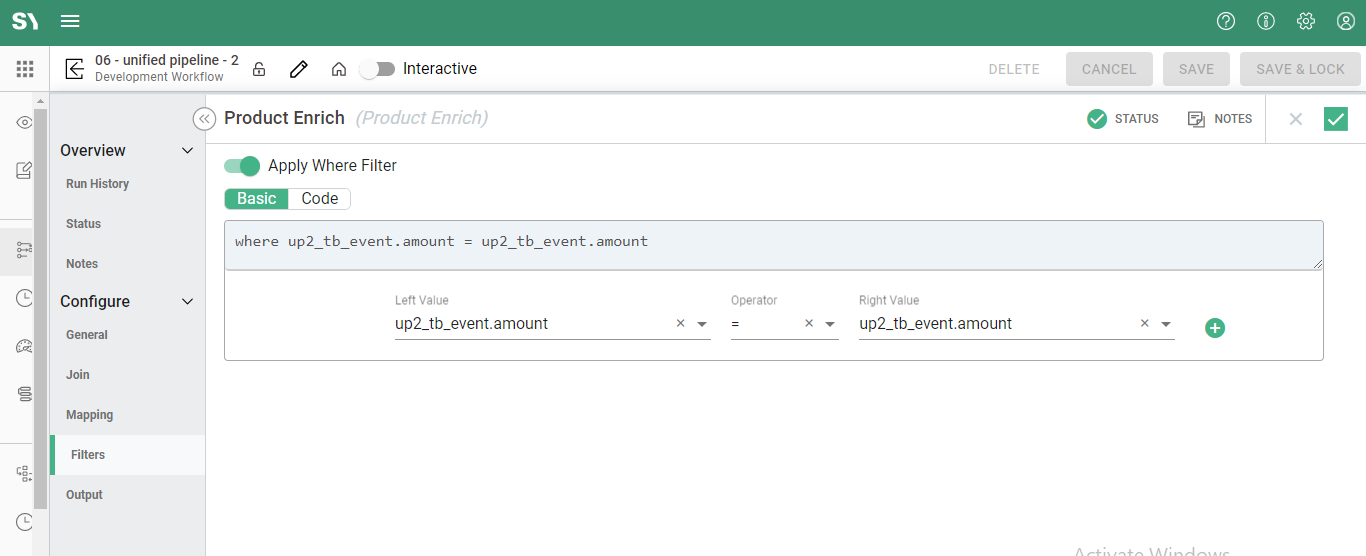

Filters

      Filters provide the user with the ability to filter the dataset (apply a Where clause).

To create a filter:

  • Click the green + button
  • The filter editor screen will appear
  • Ensure the proper (AND/OR) logic is applied
  • Select the appropriate Left Value from the drop-down list or click --Function Editor-- to create and apply a custom function
  • Select the appropriate Operator from the drop-down list
  • Select the desired Right Value for the filter from the drop-down list or click --Function Editor-- to create and apply a custom function
  • Multiple filters can be created and applied
  • ensure the proper (AND/OR) logic is applied when adding additional filtering if required

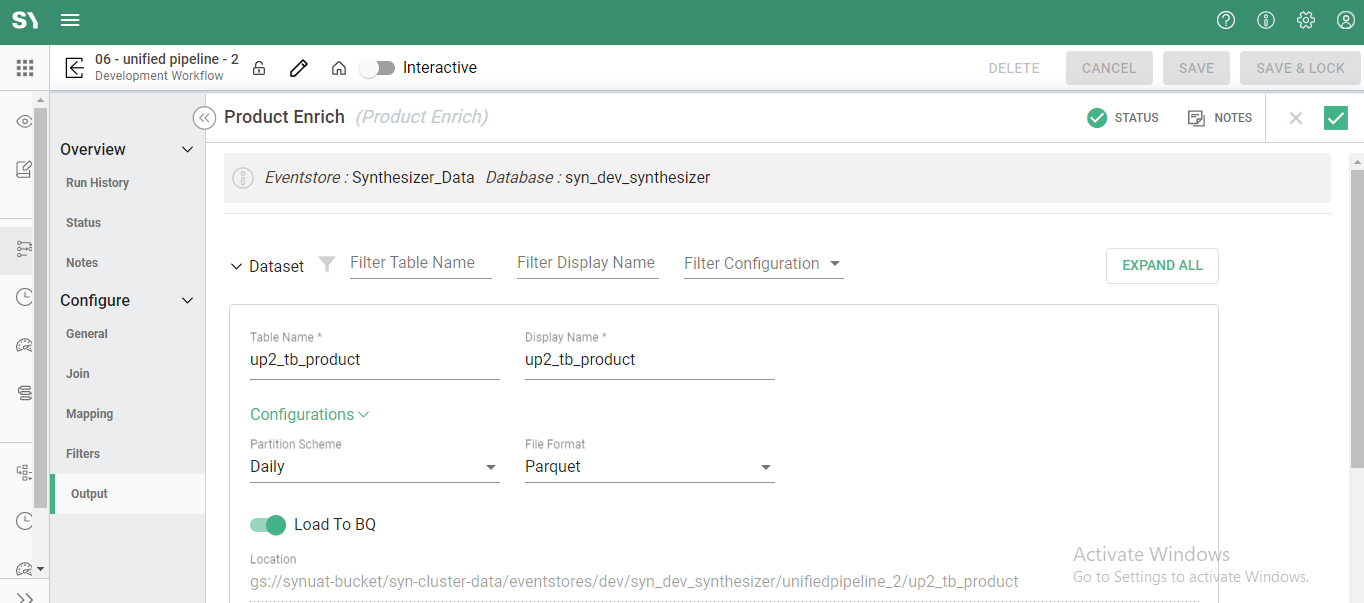

Output

        The Output tab provides the ability to name tables and displayed names on the graph canvas, along with selecting whether to load to Big Query (BQ) if in the Google Cloud Platform (GCP), load to Redshift or RDS/ Athena if in Amazon Web Services (AWS), or simply write to HDFS if using on-premise Hadoop.

  • Table Name - defines the name of the database table where the output data will be written. Please ensure that the table name is unique to all other tables within the defined Event Store, otherwise, data previously written by another process will get overwritten
  • Display Name - The label of the process output icon is displayed on the app graph canvas.
  • Configurations
    • Partition Scheme - Defines how the output table should be stored in a segmented fashion. Options are Daily, Hourly, and None. Daily is typically chosen.
    • File Format - Defines the format of the output file. Options are Avro, Orc, Parquet, Textfile
  • Load To BQ - This option is only relevant to Google Cloud Platform deployments. BQ stands for Big Query and this option allows for the ability to create a Big Query table. If using AWS, this will have the option to Load To RedShift, and if an on-premise installation data is normally written to HDFS and does not display a Load To option.

Location - Storage bucket or HDFS location where source raw files will be stored for Syntasa Event Enrich process to use


Expected Output

        The expected output of the Product Enrich process are the below tables within the environment the data is processed (e.g. AWS, GCP, on-premise Hadoop):

  • tb_product - product level table using Syntasa-defined column names
  • vw_product - view built off tb_event providing user-friendly labels

These tables can be queried directly using an enterprise-provided query engine.
