Customer Insights Agent: The Definitive Guide

Purpose​

This document is the definitive guide for the Customer Insights Agent, covering basic usage, technical architecture, and administrative onboarding.

Learning Objectives​

After reading this guide, you will be able to:

  • Query Analytical Data: Formulate questions across seven levels of complexity, ranging from simple counts to multi-entity joins across disparate tables.
  • Leverage Generative UI: Interpret human-readable Key Takeaways alongside automatically rendered visualizations (Line, Bar, or Map) tailored to the data's shape.
  • Verify Logic and Lineage: Click Inspect (or the eye icon) to open the Traceability & Logic sidebar, allowing you to audit step-by-step reasoning logs, raw SQL code, and the specific schema columns used.
  • Operationalize Audience Insights: Pin segments to dashboards, and Share results via internal links or external CSV/Image downloads.

Home & Navigation​

Audience: Business Users & Analysts

The landing page serves as your starting point for instant data answers:

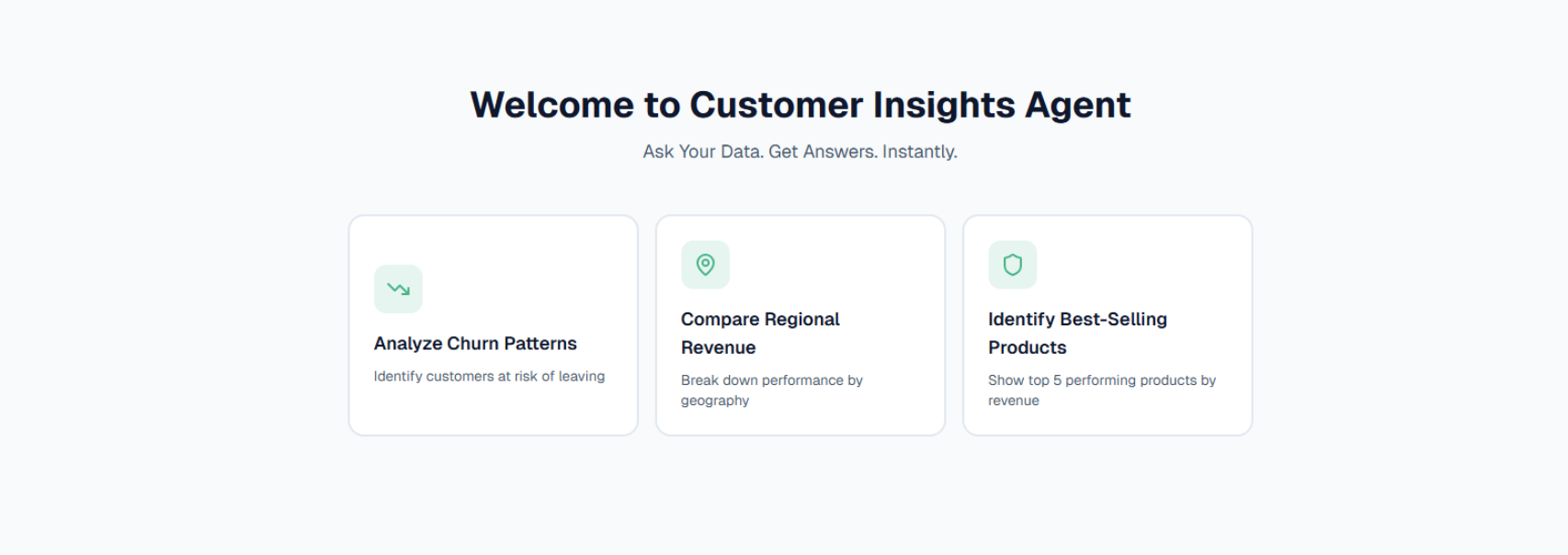

  • Quick Start Cards: Shortcuts for common analysis tasks: "Analyze Churn Patterns," "Compare Regional Revenue," and "Identify Best-Selling Products".

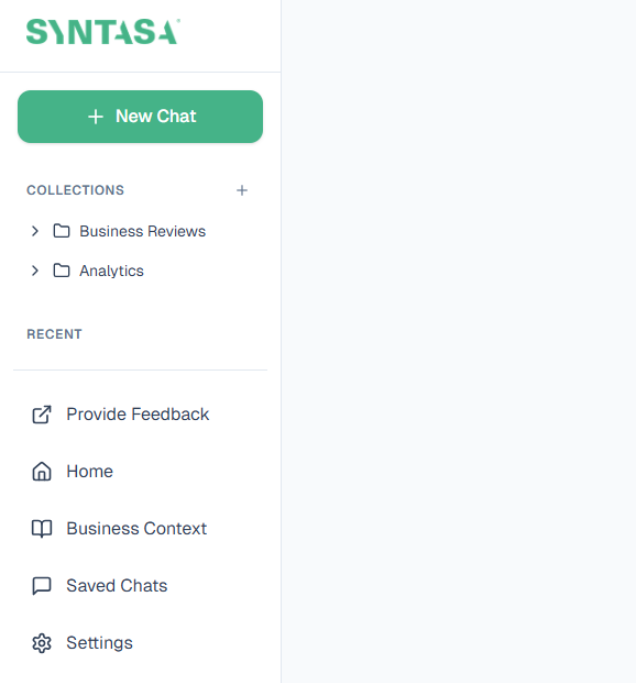

  • Navigation: Access Collections, Saved Chats, and the Business Context workspace via the sidebar

  • Accessibility: Use the Dark Mode Toggle in the bottom-left profile section to adjust visual contrast for late-night analysis

Conversational Intelligence: Asking Your Data​

Audience: Analysts & IT Teams

  • Validation Loop: If you enter an ambiguous term like "CVR," the agent pauses to ask: "Are you referring to conversion rate?".

Conversational Intelligence: Querying Your Data​

The agent translates "business lingo" into database rules through an advanced input layer.

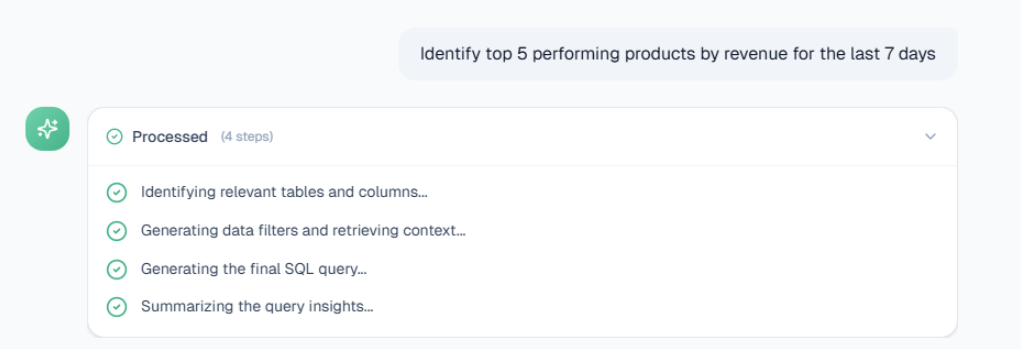

When a query is processed, the agent follows a 4-step execution chain (Identifying tables, Generating filters, Generating SQL, Summarizing insights).

  • Processing Log: Shows the step-by-step reasoning chain

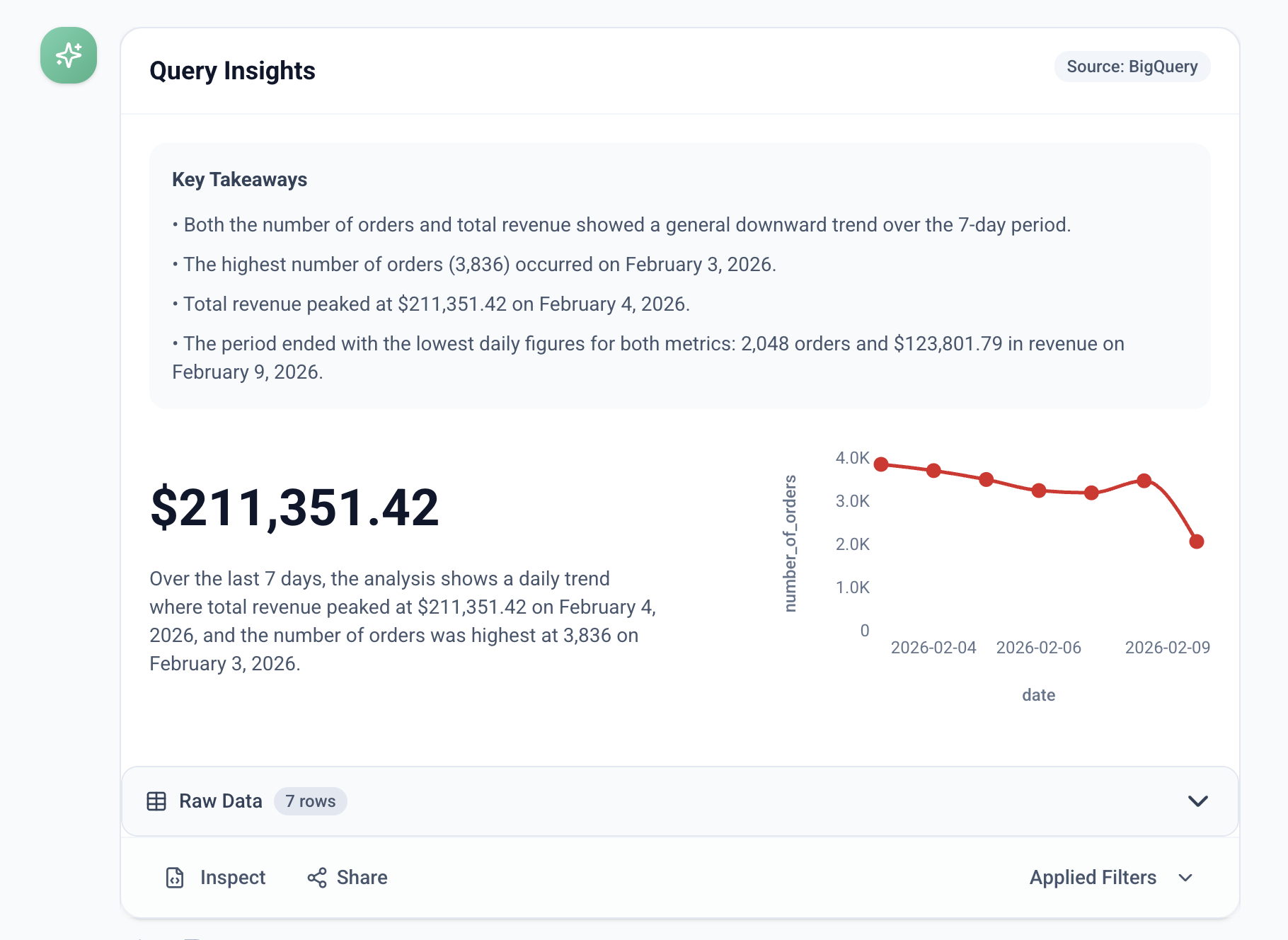

  • Query Insights: Human-readable bullet points summarizing the most important data trends.

    • Generative UI: Automatically renders the best visualization (Line, Bar, or Map) based on the data shape.

  • Action Footer:

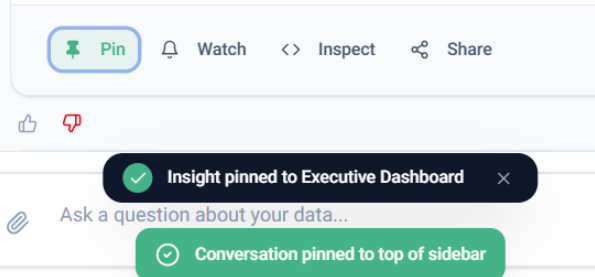

    • 📌 Pin: Saves the insight to a Dashboard or pins the conversation to the top of the sidebar for weekly meetings.

  • Inspect: Opens the Traceability & Logic sidebar to provide full transparency into the reasoning steps, raw SQL code, and data lineage

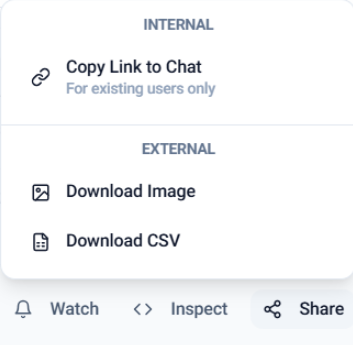

  • 📤 Share: Supports Internal links for existing users and External downloads (Image or CSV).

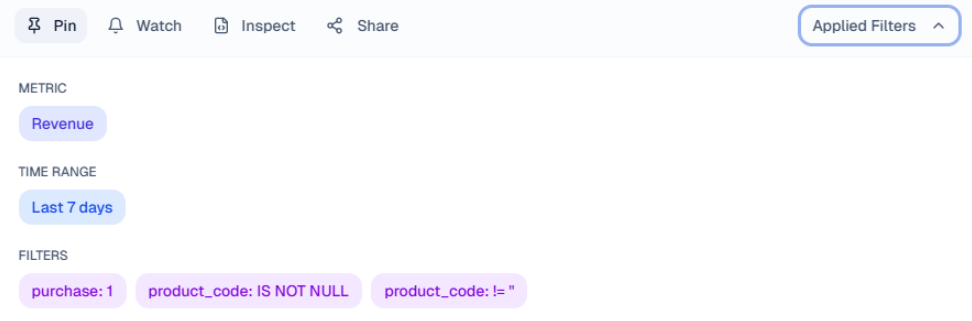

  • Applied Filters: A dedicated dropdown to review the specific Metric, Time Range, and Filters applied to the result.

Explainable Trust: Traceability & Logic​

Audience: Analysts & Data/IT Teams

The Traceability & Logic sidebar (accessible via the Inspect button or the Eye Icon) provides total transparency for every generated insight.

Components of the Sidebar​

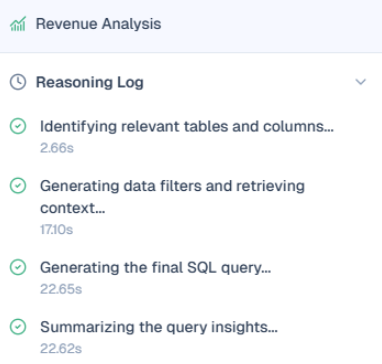

  • Reasoning Log: A human-readable, step-by-step log showing the logic used and the time taken for each stage of the pipeline.

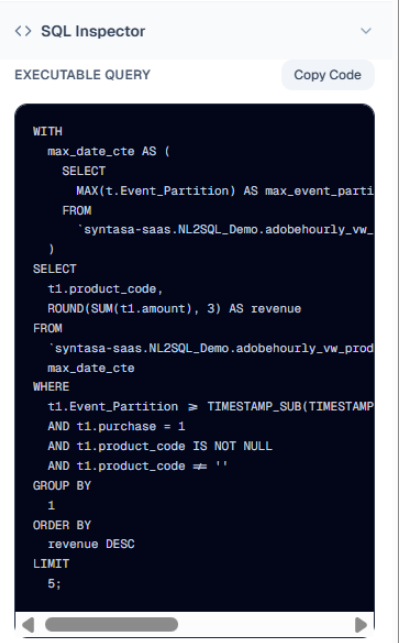

  • SQL Inspector: A read-only block containing the Executable Query. Users can verify the syntax or click Copy Code for use in other systems.

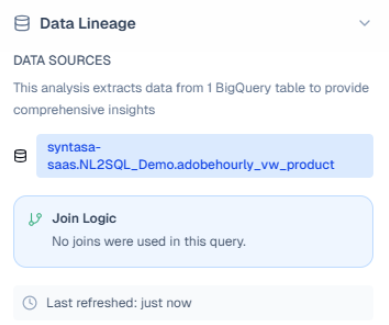

  • Data Lineage:
    * Data Sources: Identifies exactly which tables provided the data.

    • Join Logic: Explicitly states whether the analysis required joining multiple tables or was available in a single table.

Governance & Feedback​

Audience: Admins & Developers

Feedback Loops (RLHF)​

The agent captures granular feedback to fine-tune future responses:

  • Positive Feedback: Confirms the logic is correct and reinforces the pattern.

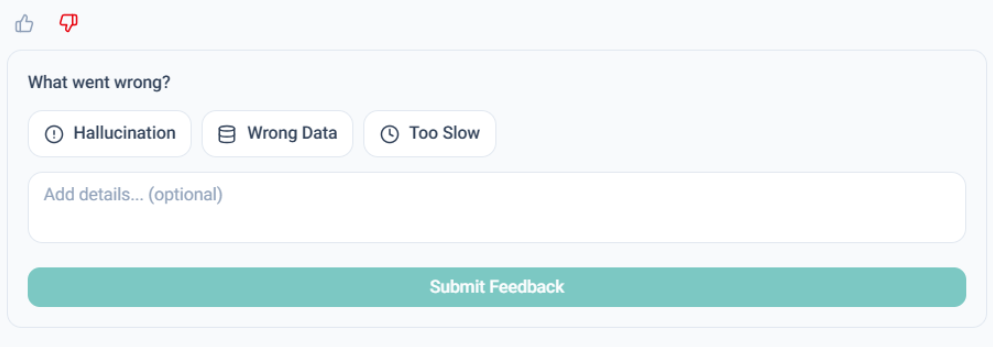

  • Negative Feedback: Users can flag specific errors like Hallucination, Wrong Data, or Too Slow, providing a description for system improvement.

Safety & Self-Correction​

  • Read-Only Safety: Strict backend enforcement ensures only SELECT commands are executed, blocking any DROP or DELETE attempts.
  • Schema-Aware Generation: The agent performs a "dry-run" safety check. If the generated SQL fails against the schema, the agent silently corrects the syntax before displaying the result to the user.
  • Data Hygiene Badges: The system flags results as "Low Quality" if they rely on columns with high null values or outliers.

Advanced Capabilities & Prompting​

Purpose: Helping power users understand the limits and best practices for querying

Business Context​

This feature allows organizations to define custom rules and business lingo so the AI doesn't have to "guess".

  • Standardized Filtering: Define mandatory columns for date/time filtering (e.g., Event_Partition).
  • Default Logic: Set default time ranges (e.g., "Analyze the last 7 days if not specified").
  • Custom Definitions: Define business-specific metrics, such as "High-Value Customer = purchase amount > $1000".
  • Ranking Rules: Set default sorting and result limits (e.g., "Top 10 unless specified").

The 7 Query Groups​

The agent supports a wide range of intents, categorized by their behind-the-scenes SQL complexity:

GroupIntentExample QuestionSQL Logic
1. Simple CountsQuick status or totals.“How many audiences are active?”COUNT(*)
2. Metadata FiltersNarrowing by attribute.“Show me datasets using schema X.”WHERE filters
3. AggregationsGrouping/summarizing.“Count destinations by region.”GROUP BY
4. Sorting & Top-NFinding top/latest items.“Top 5 schemas by dataset count.”ORDER BY... LIMIT N
5. Conditional LogicAdding computed flags.“Mark journeys as ‘idle’ if inactive.”CASE WHEN
6. Temporal QueriesAnalyzing over time.“How many datasets per day this week?”Date functions
7. Multi-Entity JoinsCombining tables.“Which datasets belong to activated audiences?”JOIN logic

Prompting Best Practices​

  • Plain English: Ask complete questions with clear entities (e.g., specific dates, dataset names, or audience types).
  • Simplicity: Stick to one core concept per question to yield the cleanest SQL.
  • Iteration: If a result isn't perfect, rephrase slightly—the agent learns patterns from structure.
  • Entities to Try: Focus on core datasets currently supported, such as vw_event (event-level data) and vw_product (product metadata).

Technical Architecture & Security​

Purpose: Providing IT and InfoSec teams with the necessary system guardrails.

Data Security & Access​

  • Read-Only Model: The agent only reads data; it does not insert, update, or modify any tables.
  • Least-Privilege: It operates under a service account restricted to SELECT access only.
  • Privacy: Enterprise Vertex AI usage ensures that data passed to Gemini is never used for model training.
  • Auditing: The tool captures submitted questions, final SQL, and result metadata for accuracy testing.

Internal Optimizations​

  1. Schema Matching: Finds relevant tables by comparing the query to precomputed DDL embeddings.
  2. Similar SQL Lookup: Searches a library of "GoodSQL" examples to find similar structures or intents.
  3. Shortlisting: Gemini identifies specific columns for SELECT/JOIN and conditions for the WHERE clause .
  4. SQL Generation: Synthesizes and validates a complete, executable SQL statement.

Admin Onboarding & Accuracy Evaluation​

Purpose: Assisting administrators in setup, testing, and troubleshooting.

Required Onboarding Inputs​

  • Access Credentials: Connection strings, API keys, or service account credentials.
  • Table Inventory: A list of every table the agent should query.
  • Schema Descriptions: Table and column purposes (can be auto-generated by Gemini if unavailable) .
  • Sample NL-SQL Pairs: Verified "GoodSQL" examples to guide the agent's few-shot learning.

Accuracy Evaluation Metrics​

The system automatically evaluates every query based on four key metrics:

  1. Column Match Rate: Did it pick the right fields?
  2. Filter Match Rate: Did it apply the correct conditions/filters?
  3. SQL Validity: Does the query semantically align with the ground truth?
  4. Final Score: The average of the above metrics representing overall accuracy.

Troubleshooting & Known Nuances​

Tests have identified specific "formatting traps" to watch out for:

  • Operator Mismatch: The model may use BETWEEN when the ground truth expects separate >= and < filters, which can lower the filter score despite being semantically correct.
  • Function Omissions: The model might miss necessary functions like TIMESTAMP() in the filter value.
  • Quoting Discrepancies: Mismatches can occur if the model includes quotes around date strings while the ground truth does not.
  • Refinement Strategy: Admins should update prompt templates with domain-specific terms or guardrails (e.g., safe query limits) to resolve these issues
